Lightweight Sheet Piling
Shoreline Steel offers these lightweight steel materials available in ASTM-A-857 / GR.33 & 36 / Bare or Galvanized finish. All of the listed lightweight sheet pilings are fully manufactured in the USA. All the lightweight sheet piling can be cut to the length you need it. The lightweight sheet piling can be used to prevent erosion to protect shores.

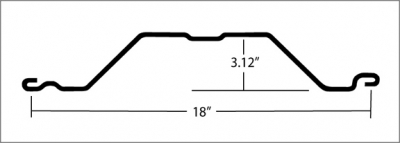

Lightweight Sheeting Cross Section
| Central Section | Thickness | Weight | Weight | Sec. Mod. | Moment of Inertia | Coating Area |
|---|---|---|---|---|---|---|
| Gauge | Nominal | Lb/Square Ft. | Lb/Lineal Ft. | Inch3(Ft.Wall) | Inch4(Ft.Wall) | Sq.Ft/LF |
| 10 - 10 | .134 | 7.2 | 10.8 | 2.2 | 3.5 | 3.7 |
| 8 - 8 | .164 | 8.8 | 13.2 | 2.62 | 4.2 | 3.7 |
| 7 - 7 | .179 | 9.6 | 14.4 | 2.8 | 4.4 | 3.7 |
| 6 - 6 | .194 | 10.5 | 15.8 | 3.0 | 4.9 | 3.7 |
| 5 - 5 | .209 | 11.3 | 16.9 | 3.4 | 5.4 | 3.7 |
Bent Corners - Any angle up to 90 degrees

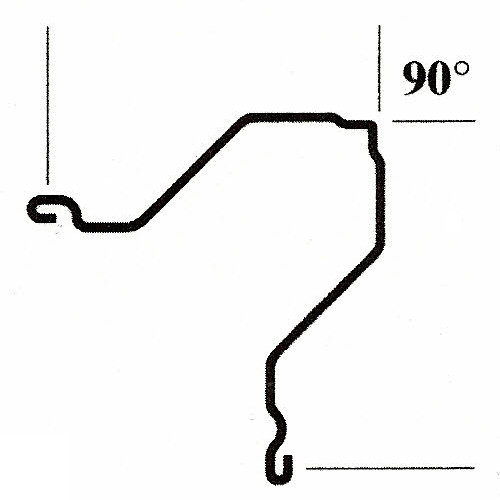

"E" Type
Available from stock
- Capping Angle
- Waling Channel
- Tie Back Rods

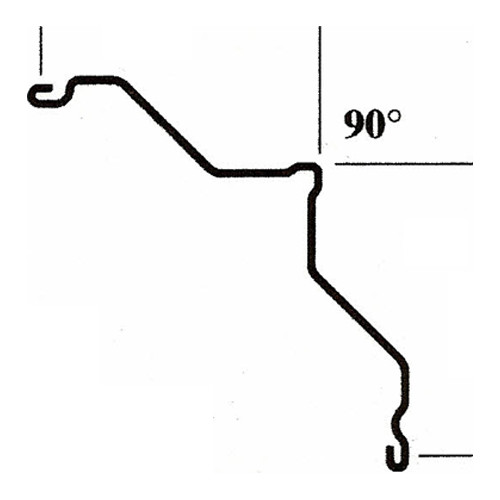

"F" Type
Available from stock
- Custom Capping
- Waling Channel
- Tie Back Rods
